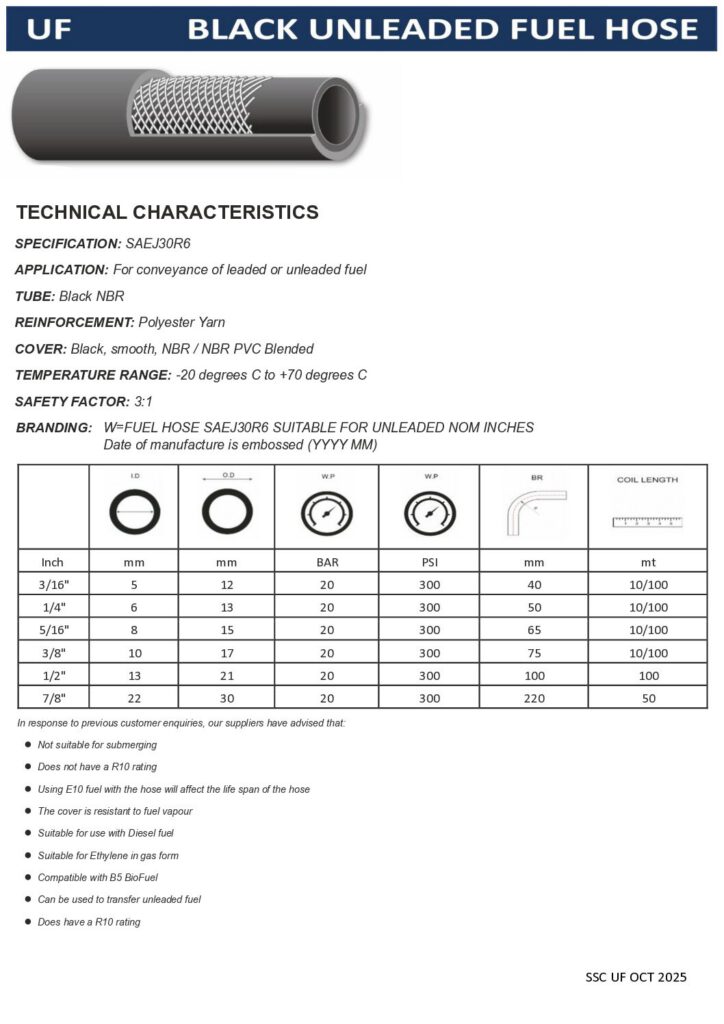

Black Unleaded Fuel Hose
SKU: UF
Technical Characteristics
Specification
SAEJ30R6
Application
For conveyance of leaded or unleaded fuel
Tube
Black NBR
Reinforcement
Polyester Yarn
Cover
Black, smooth, NBR / NBR PVC Blended
Temperature Range
-20°C to +70°C
Safety Factor
3:1
Branding
W=FUEL HOSE SAEJ30R6 SUITABLE FOR UNLEADED NOM INCHES Date of manufacture is embossed (YYYY MM)
Sizes
| Inch | Inner Diameter (ID) (mm)  | Outer Diameter (OD) (mm)  | Working Pressure (BAR)  | Working Pressure (PSI) | Bend Radius (BR) (mm)  | Coil Length (Metres)  |
|---|---|---|---|---|---|---|
| 3/16" | 5 | 12 | 20 | 300 | 40 | 10, 100 |
| 1/4" | 6 | 13 | 20 | 300 | 50 | 10, 100 |
| 5/16" | 8 | 15 | 20 | 300 | 65 | 10, 100 |
| 3/8" | 10 | 17 | 20 | 300 | 75 | 10, 100 |
| 1/2" | 13 | 21 | 20 | 300 | 100 | 100 |
| 7/8" | 22 | 30 | 20 | 300 | 220 | 50 |
Conversions shown are approximate and rounded.
